Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books

Name: SemiAutomatic Notebook Binding Machine with 15kw Power 17 PCSMIN Speed and 60mm Thickness for Soft Cover and Children Books
Brand: Maufung
Price: 11 USD

Quality Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books for sale

Place of Origin : Guangdong, China

Brand Name : Maufung

MOQ : 1

Price : $11,500-12,500

Voltage : 380V

Power : 1.5kw

Dimensions : 1820*930*2100mm

Production capacity : 17 PCS/MIN

Weight : 540 KG

Model : SKJ380AS

Speed : 700-1000pcs/h

Power Supply : 380V, 3PH

Thickness : 60mm

Book Size : 360*270mm

Block Thickness : 4-60mm

Max Size : 360x270mm

Min Size : 90x60mm

Core Components : PLC, Gear, Motor

Work Speed : 0-17PCS/minute

Contact Now

Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books

Applications

To those medium and small factories, hardcover book casing is time-consuming. In order to shorten time, labor and enhance poor efficiency in process of making hardcover books,we develop a semi auto casing machine based on part of the working principle of importing full-automatic casing machine. It not only removes the shortage of unbalance gluing, but also improves the gluing speed (once two sides).It is quick and precise in locating the hard cases and aligning the book block with cases.

This machine is applied to Soft cover notebooks and children books.

Product Description

Model No	MF-SKJ380AS
Power Supply	380V/220V, 50HZ
Mainframe power	1.5kw
Work Speed	0-17PCS/minute (Adjustable Speed
Block Thickness	4-60mm
Max Size	360x270mm
Min Size	90x60mm
Machine Dimensions(L×W×H)	1820×930×2100mm
Machine Weight	540kg

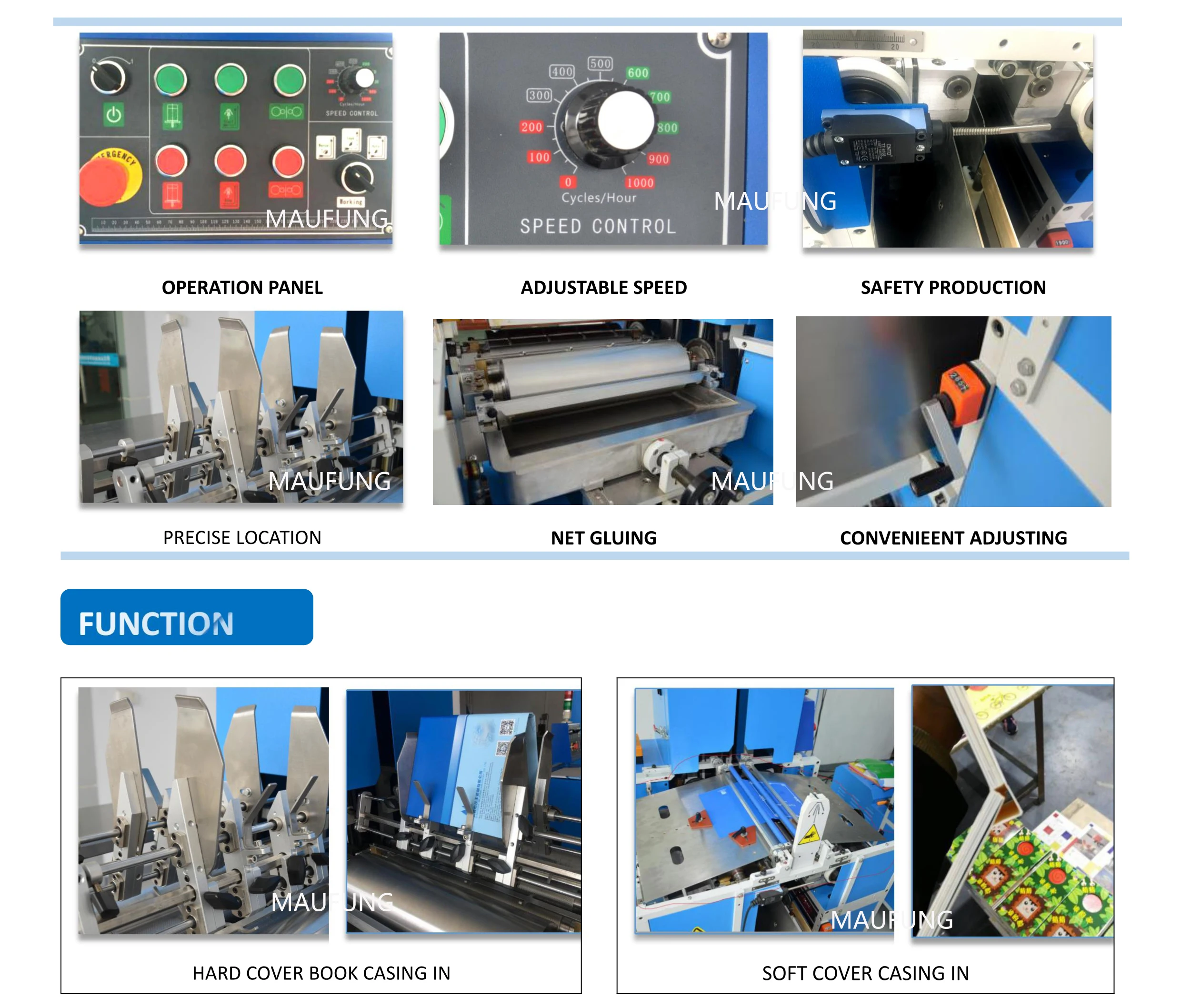

Main Features

Adjustable Speed:

Speed range 0-1000 books/hour (17 books/minute). The parameter is measured as per the common pause time.

Adjustable pause time:

The pause time when the machine goes up to the highest point is controlled by the outside time relay. The users can adjust the time upon their needs.

Inch in Operation:

Add inch-in switch for precise aligning during machine debugging .

Automatic power off function:

The machine motor will stop running if not operating in 10 minutes. It guarantee the operator safety and greatly extend the machine working life.

Importing Variable-frequency Drive:

We apply the famous variable-frequency drive brand.

Convenient for users to install the electricity:

As it is applied variable-frequency drive controller, no matter what the three -phase electric phase sequence is, the machine rotation direction is always right, The breakdown and the damage of machine caused by reverse power phase sequence or opposite machine rotation is completely removed .

Related Products

MF-SCM500A

Semi Auto Case Maker

MF-PCM380EV

Hard Cover Book Casing In Machine

MF-PF400

Photo Book Lay Flat Binder

Company

Sales Network

Certifications

On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. As a professional company for binding and packaging who integrate R&D, manufacturing and selling, we gain CE certificate, and won many patents, and obtain National "High Tech Enterprise”

FAQ

1.Is your company a factory or trading company?
Our company is a factory.

2.What about the samples?
You can visit our factory if you'd like.

3. How to install the machine?
After-sales Service Provided:Online support

After-sales Service Provided:Free spare parts

After-sales Service Provided:Field installation, commissioning and training

After-sales Service Provided:Field maintenance and repair service

After-sales Service Provided:Video technical support

4. What if the machie can't work?
We are avalible 24 hours online.

5. How long is the warranty period?
One year.

6.What are certificates of machine we have?

Our machines all have CE certificates and Certificates of origin.
